Marker Menu

When markers are available for the KDDart implementation and configuration being used, KDManage will display the Marker Menu as seen below:

The topics in this section are as follows:

Genotyping Marker Process
DNA Management
Marker Data Management
Marker Maps

Genotyping Marker Process

The steps for preparing, ordering and storing genotypic analysis data in KDDart are described in the following table:

Note

Bold items within the Action Column represent menu/selection text.

Genotyping Marker Process
Step	Activity	Action
1.	Define a group of samples for genotyping.	Select KDManage > Marker > Marker Data Management > Add Marker Data Management.
2.	Download file (equivalent to the sample tracking file for the Online Ordering)	Select the Download Button.
3.	Submit the sample tracking file for the order in the Online Ordering system.	Optional genotyping service (i.e. DArT)
4.	Prepare specification, submit file, sign, pack and ship DNA.	“
5.	Genotyping service performs DNA analysis	“
6.	Genotyping service notification that results are ready	“

There are three choices to download marker datasets, depending on the KDDart configuration:

Genotyping Marker Process - KDManage
Step	Activity	Action
1.	Import via KDManage.	Select KDManage -> Marker -> Marker Data Management -> Upload dataset file for Marker Data Management 9

Genotyping Marker Process - KDCompute
Step	Activity	Action
1.	Log into the Online Ordering and download the result file to a local/network location.	“
2.	Use KDCompute to upload the result file to the KDCompute server for processing	Select KDCompute -> File Manager -> Upload Files -> Select file and upload
3.	Use KDCompute to import the data into KDDart	Select KDCompute -> Submit a Job - > Import/Export Marker Data -> Import Marker Data -> Complete the form and submit the job
4.	Check job status for successful import	Select KDCompute -> File Manager -> submitted_jobs -> select job number -> download and view file(s)

Genotyping Marker Process - KDManage Collect Order via BrAPI
Step	Activity	Action
1.	Retrieve Authentication Token and Order ID from vendors.	This step may vary depending on choice of vendor.
2.	Use Collect Order to import dataset.	Select KDManage -> Marker -> Marker Data Management -> Collect Order

Note

DArT provides an optional genotyping/profiling service.

DNA Management

The DNA Management Page lists DNA plates that have been uploaded to KDDart.

Selecting the List Button for any plate will display a Plate Window which lists extracts that are associated with that plate (pictured below).

Adding a DNA Plate

To add a new DNA plate, select the Add DNA Plate Button located on the DNA Management Page. This will display the Add DNA Plate Window as shown in the image below:

Field descriptions to assist with completing the form are displayed in the following table:

Add DNA Plate Fields
Field	Mandatory?	Description
Trial Name	Mandatory	Trial that this plate is associated with. Upon selecting an existing trial, this will display the relevant plates to this trial.
Creation Date	Mandatory	Date the genotyping service was created.
Plate Layout		CSV file containing plate name, row, column and genotype name columns.
Tissue	Mandatory	Tissue used in this plate.

Plates as in the following illustration may be removed using the Remove Plate button at the bottom left.

Also, individual cells may be edited or removed as required. The image and table below contain more information:

Add DNA Plate Window - Cells (select to zoom)

Add DNA Plate Fields - Individual Cells
Field	Mandatory?	Description
Plate 1 Name	Mandatory	Name for this iteration of plate.
Plate 1 Description		Description of the plate.
Plate 1 Storage Location		Location where the plate is stored.
Plate 1 Tissue		Tissue used in these plates.

Editing a Well Plate

Selecting a well will display the Edit Well Plate Window, as displayed in the following image, where the well may be edited or removed using the buttons on the window.

Editing Well Plate Window (select to zoom)

Note

Hovering the mouse above a well will display the trial unit position and the specimen name.

Marker Data Management

The Marker Data Management Page lists marker datasets that have been imported to KDDart and provides options for managing them including viewing, editing, and submitting samples.

Adding Marker Data Management

To add a new marker data management genotyping/profiling entry, select the Add Marker Data Management Button located on the Marker Data Management Page to display the Add Marker Data Management Window:

Add Marker Data Management Window (select to zoom)

Field descriptions to assist with completing the form are displayed in the following table:

Field	Mandatory?	Description
Marker Data Management Name	Mandatory	Text string to describe the genotyping service.
Description		Additional description of the genotyping service.
Manager Name		A designated manager for the genotyping service who is defined in KDDart Contacts.
Selected plates	Mandatory	Plates from DNA management selected for this marker data. Drag and drop plates from the Plates List to add specific plates to this marker data.
Access Fields	Mandatory	Access and permissions. See the Access Settings and Permissions topic.

Each plate that is selected will be displayed in the window. See the image and table below for more information:

Plate Added to the Add Marker Data Management Window (select to zoom)

Add Marker Data Management Window - Plate Fields
Field	Mandatory?	Description
Plate 1 Name	Mandatory	Name for this iteration of plate.
Plate 1 Description		Description of the plate.
Plate 1 Storage Location		Location where the plate is stored.

Plates as in the following image may be removed using the Remove Plate button at the bottom left of Plates List

Note

Hovering the mouse above a well will display the trial Unit position and the specimen name.

Editing a Well Plate

Selecting a well will display the Edit Well Plate Window (as displayed in the following image) where the well may be edited or removed using the buttons on the window.

Migrate Marker Data

Migrate marker data and allows plate creation and analysis groups automatically. This also allows easier connection of samples to trial units through Trial unit Barcodes. To start, select Migrate Data located on the Marker Data Management Page to display Migrate Data from Marker File window:

Migrate Data from Marker File (select to zoom)

Fill the form accordingly based on the CSV file. Once all the required columns have been filled, select the Upload button to proceed with import data.

Note

For referencing the CSV file contents, column and row numbering commences with zero.

Note

All genotype and specimen references must be already created in the database. See

Tip

After selecting a file to upload, the file contents will be displayed underneath the form. This can be used to refer to the correct columns as required.

Migrate Data Fields
Field	Mandatory?	Description
CSV Data Set File	Mandatory	Browse to locate and select the CSV file to import.
Plate Name Row	Mandatory	The row that contains the plate names.
Item Barcode Row		The row that contains the item barcodes.
Specimen Name Row		The row that contains the specimen names.
Genotype Name Row		The row that contains the genotype names.
Well Position Row		The row that contains the well positions.
Well Row Row		The row that contains the well rows.
Well Column Row		The row that contains the well columns.
Header Row	Mandatory	The row that contains the headers.
Marker Name Column	Mandatory	The column that contains the marker names.
Sequence Column	Mandatory	The column that contains the sequences.
Meta Data Start Column	Mandatory	The first column in the CSV file containing meta data for import.
Meta Data End Column	Mandatory	The last column in the CSV file containing meta data for import.
Data Start Column	Mandatory	The first column in the CSV file containing data for import.
Data End Column	Mandatory	The last column in the CSV file containing data for import.
Analysis Group Name	Mandatory	Given analysis group name.
Data Set Type	Mandatory	The type of dataset, as defined in type definitions.
Access Fields	Mandatory	Access and permissions. See the Access Settings and Permissions topic.

Upload Dataset File

To upload a new dataset to a marker data management group, select Upload Dataset File in the Actions Column for the required group. This will display the Upload Dataset File Window. The window and a table that describes the related fields can be found below:

Note

For referencing the CSV file contents, column and row numbering commences with zero.

Tip

After selecting a file to upload, the file contents will be displayed underneath the form. This can be used to refer to the correct columns as required.

Field	Description
CSV Data Set File	Browse to locate and select the appropriate CSV file for import.
Plate Name Row	The row that contains the plate names.
Well Row Position Row	The row that contains the well row positions.
Well Column Position Row	The row that contains the well column positions.
Header Row	The row that contains the headers.
Marker Name Column	The column that contains the marker names.
Sequence Column	The column that contains the sequences.
Meta Data Start Column	The first column in the CSV file containing meta data for import.
Meta Data End Column	The last column in the CSV file containing meta data for import.
Data Start Column	The first column in the CSV file containing data for import.
Data End Column	The end column in the CSV file containing data for import.
Data Set Type	The type of dataset, as defined in type definitions.

Upload Alternative Format Dataset File

To upload an alternative format of dataset file, where samples are organised in rows, to an analysis group, select Upload Alternative Format Dataset File (under dropdown) in the Action Column for the required group. This will display Upload Dataset File for Marker Data Management window that shown below:

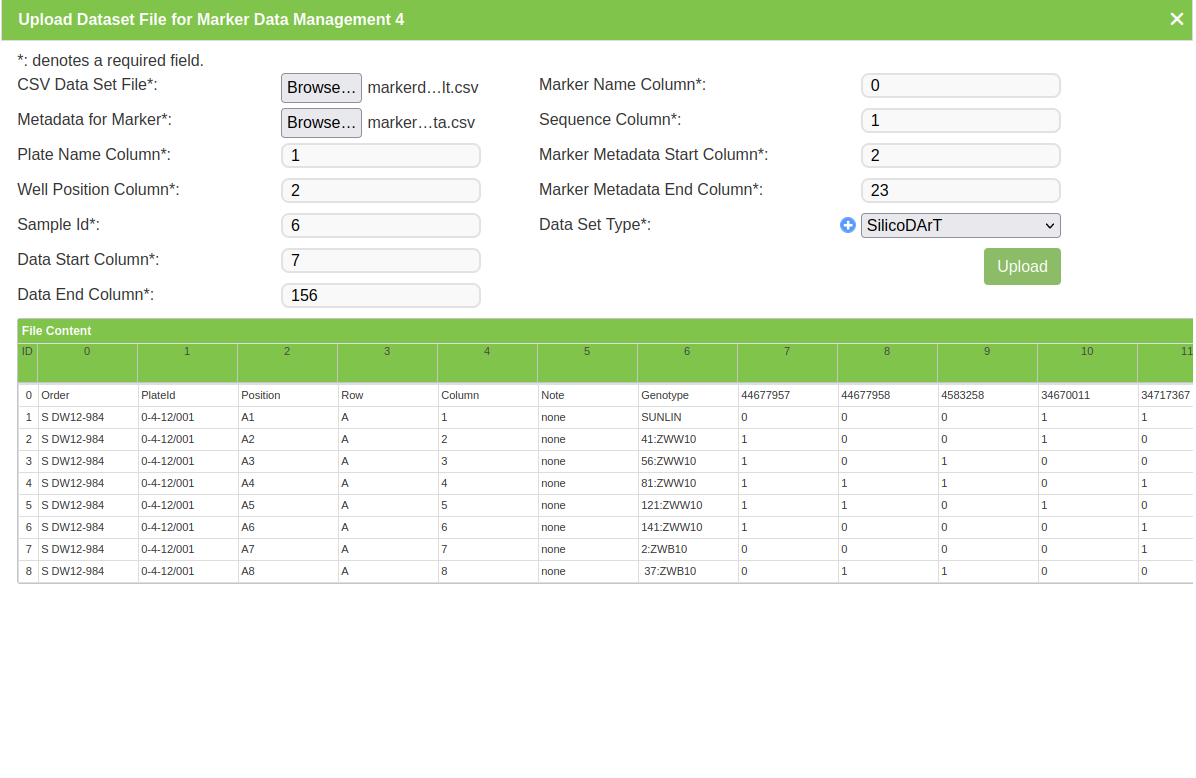

Upload Dataset File for Marker Data Management (select to zoom)

Number the cells in the form and click on Upload button once all the required columns have been filled. This will continue the process to upload dataset file.

Note

For referencing the CSV file contents, column and row numbering commences with zero.

Tip

After selecting a file to upload, the file contents will be displayed underneath the form. This can be used to refer to the correct columns as required.

Upload Alternative Format Dataset File Fields
Field	Mandatory	Description
CSV Data Set File	Mandatory	Browse to locate and select the marker data CSV file to import.
Metadata for Marker	Mandatory	Browse to locate and select the marker metadata CSV file to import.
Plate Name Column	Mandatory	The column that contains the plate names.
Well Position Column	Mandatory	The column that contains the well positions.
Sample Id	Mandatory	The column that contains the sample Id. This is usually made up of genotype names.
Data Start Column	Mandatory	The first column in the CSV file containing data for import.
Data End Column	Mandatory	The last column in the CSV file containing data for import.
Marker Name Column	Mandatory	The column that contains the marker names.
Sequence Column	Mandatory	The column that contains the sequences.
Marker Metadata Start Column	Mandatory	The first column in the CSV file containing meta data for import.
Marker Metadata End Column	Mandatory	The last column in the CSV file containing meta data for import.
Data Set Type	Mandatory	The type of dataset, as defined in type definitions.

Collecting an Order

To collect a completed order and create relevant data points, select the Collect Order Button located on the Marker Data Management Page. This will display the Collect Order Window which is pictured below, along with a table that describes the relevant fields:

Note

This feature requires system administrator set up, including the creation of relevant types and KDManage system configuration.

Field	Mandatory?	Description
BrAPI Genotyping Vendor Base URL	Mandatory	Select the vendor BrAPI URL.
Order ID	Mandatory	Full Order ID of completed order for import.
Authentication Token	Mandatory	Authentication token from genotyping vendor.
Source Field for Sample ID	Mandatory	KDDart entity that will be created or linked to sample ID.
Access Fields	Mandatory	Access and permissions. See the Access Settings and Permissions topic.

Printing Barcodes for Marker Data

To download a set of barcodes for the Marker Data Management group, select “Print Barcodes” (under dropdown) in the Action Column for the required group in the Marker Data Management Page.

List Marker Datasets of Group

To list all datasets in a group, select List Datasets in the Actions Column for the required group in the Marker Data Management Page.

Visualising a Dataset with a Heatmap

To visualise a dataset with a heatmap, select Visualise Data in the Action Column of the List Datasets Window (for the required marker dataset of a group). This will open the Marker Data Window as seen in the image below:

Data can be further filtered and sorted to retrieve more specific data. Visualised data can also be downloaded as an SVG file for further use.

Individual sample/marker squares can also be selected to reveal more information about a sample.

Downloading a Dataset

To download a dataset, select Download Data in the Action Column of the List Datasets Window (for the required marker dataset of a group). This will open the Download Dataset Window as seen in the image below:

Download Dataset Window (select to zoom)

Download Dataset Fields
Field	Description
Format Type	The format that the dataset will be downloaded in. In standard installations, this will either be CSV or Flapjack. Extra formats can be added with extra development.
Marker Metadata Field List	Chosen marker metadata fields to include in the download. Leave blank to include all.
List of DNA Extracts	Chosen DNA Extracts to include in the download. Leave blank to include all.
List of Marker	Chosen markers to include in the download. Leave blank to include all.
Marker list from CSV	Upload a CSV of markers to filter from.
Extract list from CSV	Upload a CSV of extracts to filter from. Use genotype names.

Data can be further filtered and sorted to retrieve more specific data.

Submitting Samples to a Genotyping Vendor

If KDManage has bee configured with a vendor ID, users will be able to submit samples to the vendor from analysis group plates. To submit, select Submit Samples in the Actions Column for the required analysis group. That will display the Sample Submissions Window which is shown below, along with a table that explains it’s fields:

Sample Submission to Genotyping Vendor Fields
Field	Description
BrAPI Genotyping Vendor Base URL	The URL for genotyping vendors. These must be configured by a system administrator.
Source Field for Sample ID	How samples will be identified.
Authentication Token	Authentication token from vendor.

Downloading Genotyping Results from a Vendor

If KDManage has bee configured with a vendor ID, users will be able to download genotyping results to the vendor for an analysis group. To submit, select “Download Genotyping result” (under dropdown) in the Action Column for the required analysis group.

Marker Maps

The Marker Maps Page lists marker maps that have been created within KDDart.

Adding Marker Maps

To add a new marker map, select the Add Marker Map Button located in the Marker Map Page to open the Add Marker Map Window. An image of the window and a table explaining the related fields can be found below:

Add Marker Map Fields
Field	Mandatory	Description
Map Name	Mandatory	Text string to describe the marker map.
Map type	Mandatory	The type of marker map, as defined in type definitions.
Map Software		Name of software used to create map.
Model Reference Information		Model reference information for physical maps.
Map Description		General description of the map.
Map Parameters	Mandatory	Map parameters (also software parameters) used for creation.

Importing a Marker Map Position

To add a new marker map position, select the Import Marker Map. This will open the Import Marker Map Position Window which is pictured below, along with a table that details related fields:

Import Marker Map Position Window (select to zoom)

Note

For referencing the CSV file contents, column and row numbering commences with zero.

Import Marker Map Fields
Field	Description
Marker Map Position File	Browse to locate and select the appropriate CSV file for import.
Marker Name Column	The column that contains the marker names. Markers must match the ones contained in the selected analysis group.
Contig Name Column	The column that contains the contig names
Contig Position Column	The column that contains the contig positions
Analysis Group	The analysis group associated with uploaded marker map positions. The analysis group must have a least one dataset.

Tip

After selecting a file to upload, the file contents will be displayed underneath the form. This can be used to refer to the correct columns as required.
